Engineered Industrial Strength for High-Precision Work Environments

The Machlab Kuda Fixed Workbench Series represents the pinnacle of heavy-duty industrial worktables and static laboratory benches. Designed for demanding applications across electronics assembly, aerospace engineering, pharmaceutical testing, and heavy manufacturing, the Kuda series combines solid structural rigidity with versatile modular attachments.

Fabricated at our state-of-the-art manufacturing facility in Malaysia, each Kuda workbench uses high-grade cold-rolled steel treated with an anti-microbial epoxy powder finish. Engineered to adhere strictly to SEFA guidelines and ISO 9001:2015 quality control systems, Machlab provides global procurement teams with custom dimensions, ESD-safe grounding, and heavy load-bearing capacities up to 1,000 kg.

Kuda Workbench Models & Configurations

Select from standardized model variants designed to optimize industrial workflow efficiency.

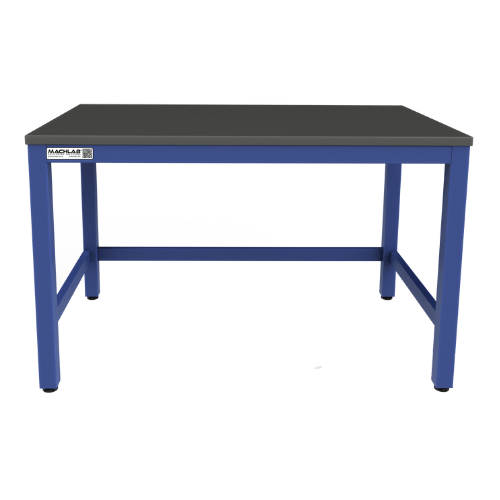

Machlab Kuda Workbench Type A - Heavy Duty Fixed Worktable

Type A Workbench

Basic heavy-duty structural frame workstation designed for versatile assembly and general laboratory tasks.

  • Heavy-gauge C-Frame steel base
  • Static load rating up to 800 kg
  • Adjustable leveling feet
Machlab Kuda Workbench Type B - Integrated Lower Shelf & Storage

Type B Workbench

Features integrated lower steel shelving for heavy equipment storage and under-table power distribution channels.

  • Full-depth bottom storage shelf
  • Dual trunking for electrical sockets
  • Vibration-resistant frame build
Machlab Kuda Workbench Type C - Technical Overhead Racks

Type C Workbench

Equipped with vertical upright structures, adjustable upper instrument shelves, and overhead LED lighting systems.

  • Dual-tier upper shelf rack
  • Overhead glare-free LED fixture
  • Compatible with ESD laminate tops
Machlab Kuda Workbench Type D - Under-Bench Storage Drawers

Type D Workbench

Incorporates suspended steel drawer pedestals and lockable storage cabinets for secure tool and instrument organization.

  • Central locking drawer modules
  • Heavy-duty ball-bearing slides
  • Customizable drawer dividers
Machlab Kuda Workbench Type E - Perforated Pegboard & Tool Racks

Type E Workbench

Designed for maintenance and tool management, featuring rear perforated steel pegboards and bin louvers.

  • Tool hanging pegboard panel
  • Parts bin mounting rails
  • Ergonomic overhead shelf
Machlab Kuda Workbench Type F - Full Utility & ESD Integrated System

Type F Workbench

Full-featured industrial workstation integrating overhead power panels, pneumatic quick-connects, and ESD grounding.

  • ANSI/ESD S20.20 compliant
  • Integrated air & gas utility outlets
  • Maximum ergonomics & load capacity

Technical Specifications & Material Options

Feature Parameter Standard Specification Customization Options
Structural Frame 40 x 40mm / 50 x 50mm Heavy-Gauge Steel Tubing Stainless Steel 304/316, Reinforced H-Frame
Worktop Surfaces High-Pressure Laminate (HPL), ESD Static Laminate Epoxy Resin, Solid Phenolic Resin, Stainless Steel
Static Load Rating 500 kg to 800 kg (Uniformly Distributed) Heavy-Duty Reinforced up to 1,200 kg
Surface Coating Electrostatic Anti-Bacterial Epoxy Powder Coating Custom RAL Color Matching, Anti-Corrosion Treatment
ESD Protection 10^6 to 10^9 Ohms/sq Surface Resistivity Common point grounding wire, wrist strap sockets
Standard Widths 1200mm, 1500mm, 1800mm, 2100mm Bespoke dimensional cut-to-fit service

Why Procurement Global Teams Specify Machlab Workbenches

25+ Years Manufacturing

Decades of engineering leadership in Malaysia delivering lab furniture and industrial workbenches to Fortune 500 tech clients.

Certified ISO & SEFA

Strict quality assurance protocols adhering to international SEFA performance standards and ISO 9001 manufacturing rigor.

Custom B2B Solutions

Full OEM/ODM manufacturing capability supported by in-house CAD specialists for tailormade layout planning.

Worldwide Logistics

Export-ready protective flat-pack packaging ensuring safe containerized delivery to site locations across the globe.

Request Product Catalogues & Wholesale Quotations

Consult with Machlab's engineering team today for technical data sheets, custom dimensioning, project contracting, or competitive B2B volume pricing.
