Certified Chemical Containment & Airflow Engineering

High-Performance Laboratory Fume Hood Systems

Machlab is a premier Malaysian manufacturer of certified laboratory fume hoods, supplying industrial plants, research institutions, pharmaceutical facilities, and educational laboratories across Southeast Asia and global markets. Engineered in strict compliance with international containment standards (EN 14175 and ASHRAE 110), our fume cupboards protect laboratory personnel from toxic vapors, hazardous gaseous emissions, airborne particulates, and aggressive chemical splashes.

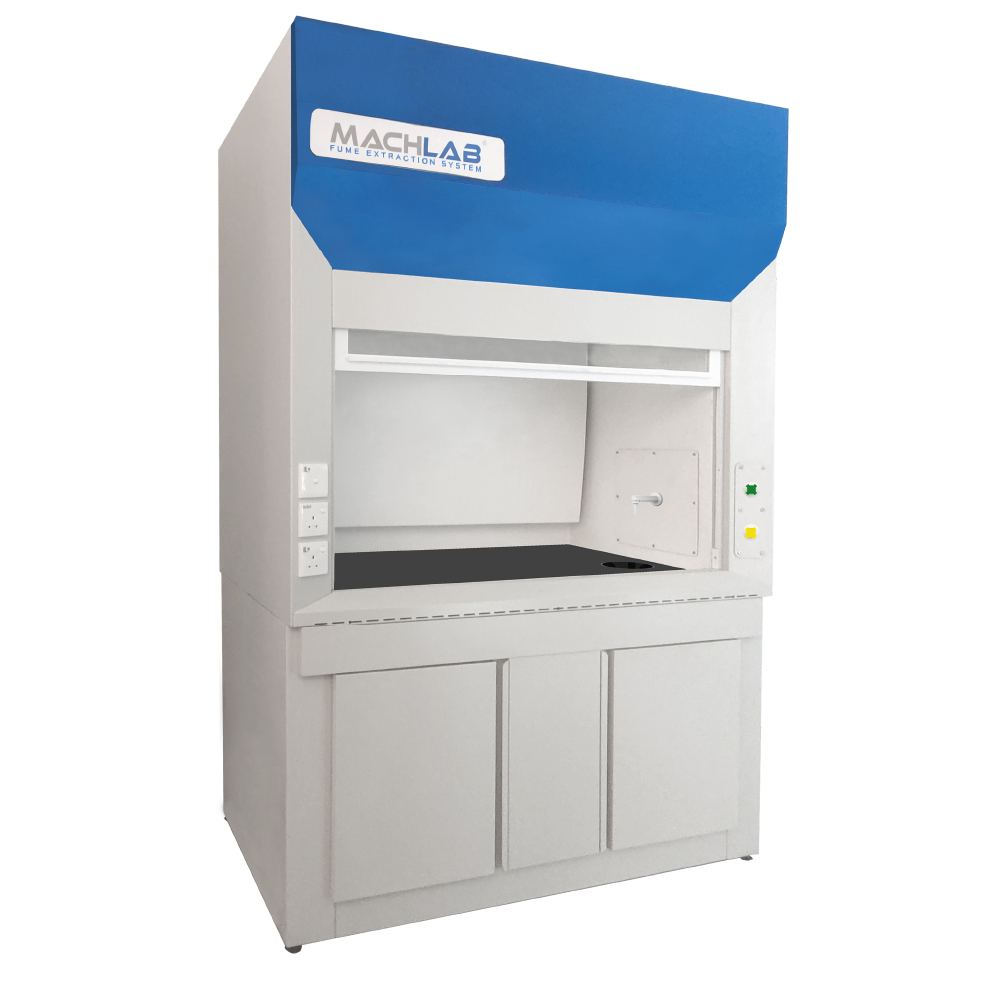

General Purpose Ducted Fume Hood

Designed for versatile analytical laboratories handling standard chemical reactions, heating, boiling, evaporation, and organic solvent manipulation. Features an aerodynamic sash design, optimized internal baffles for laminar airflow, and chemical-resistant interior liners to ensure complete operator safety and reliable fume extraction.

  • Tested containment efficiency to ASHRAE 110 and EN 14175 standards
  • Heavy-duty electro-galvanized steel body with chemical epoxy powder coating
  • Counterbalanced vertical sliding tempered safety glass sash
  • Integrated water, gas, and electrical service fixtures
General Purpose Ducted Laboratory Fume Hood

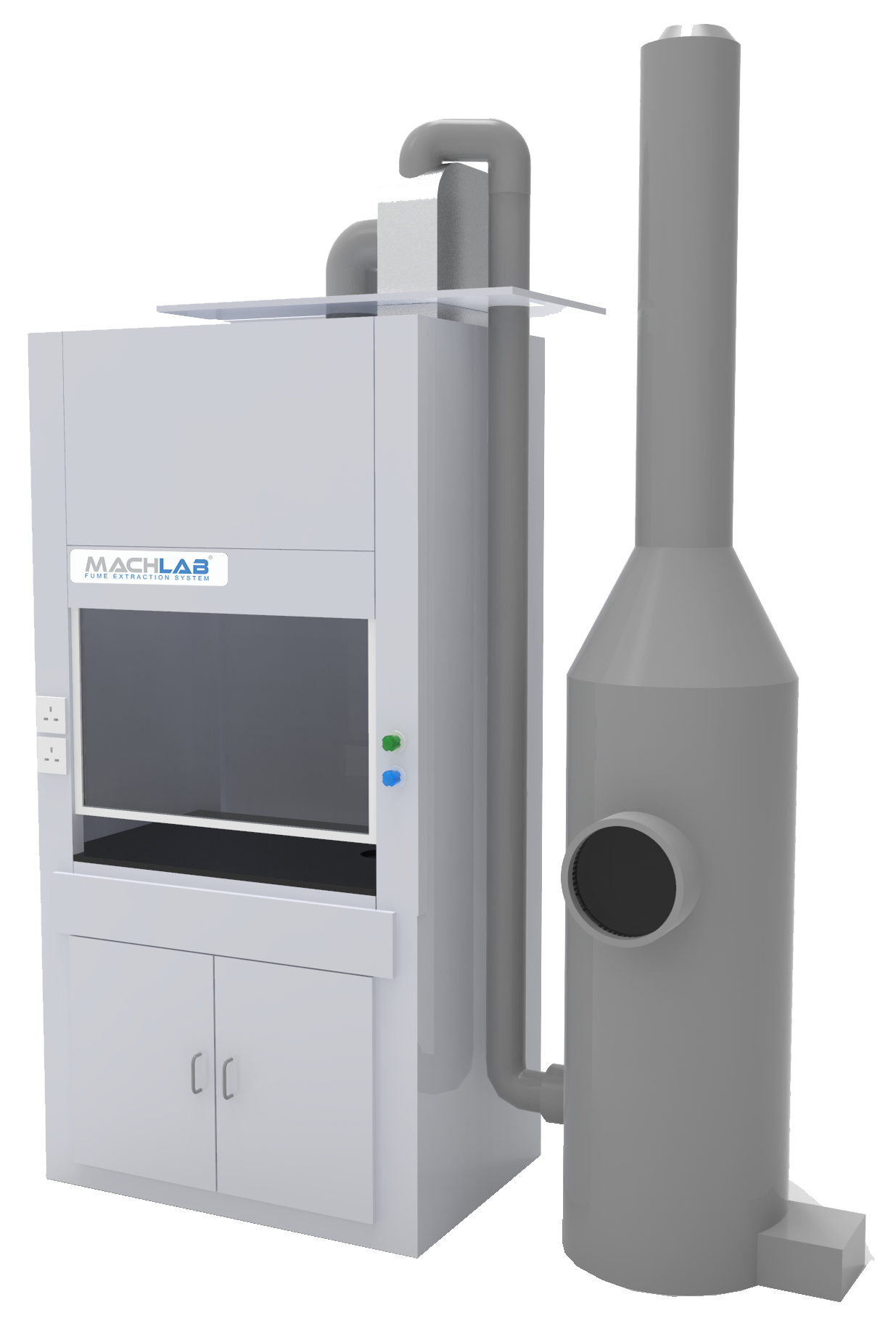

Acid Digestion Fume Hood System

Engineered specifically for heavy acid digestion, mineral extraction, and analytical processes using concentrated acids such as Hydrofluoric, Perchloric, Nitric, and Hydrochloric acids. Built with unplasticized PVC or solid Polypropylene inner structures and integrated fume scrubbers to prevent acid-induced corrosion and hazardous atmospheric release.

  • Seamless internal chemical barrier resistant to hot acid vapors
  • Optional washdown system for perchloric acid application safety
  • Seamless integration with wet gas scrubbers for neutral emission
  • High-capacity worktop with built-in spill containment rim
Acid Digestion Fume Hood with Wet Scrubber Integration

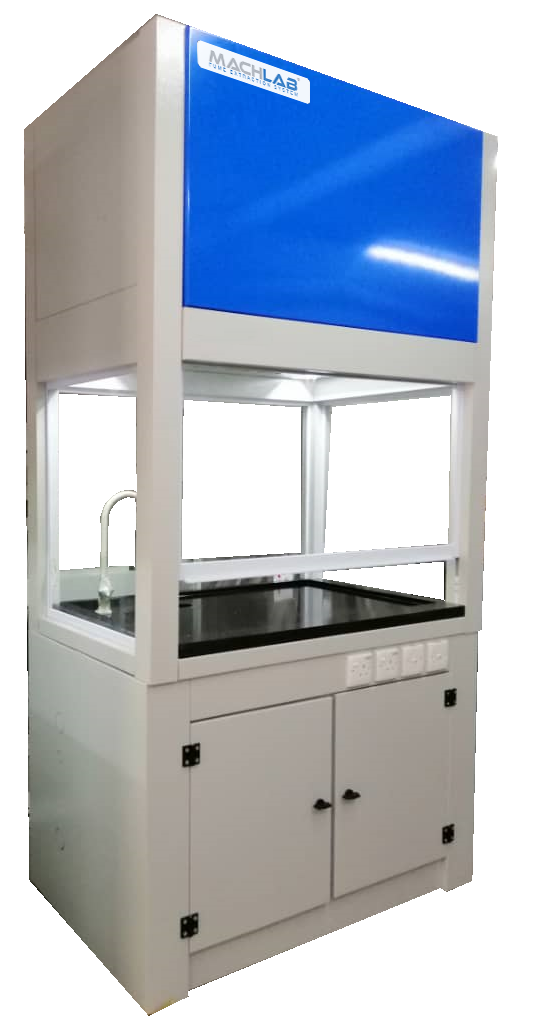

Educational & Demonstration Fume Hood

Ideal for educational institutions, academic research centers, and training facilities. Designed with 360-degree clear toughened safety glass side panels to allow unobstructed visibility during practical teaching sessions while providing continuous airflow containment.

  • 360-degree transparent viewing panels for clear demonstration
  • Double-sided accessibility option for interactive educational use
  • Quiet variable air volume (VAV) system for low-noise operation
  • Full compliance with educational lab safety regulations
Demonstration Fume Hood with 360 Viewing Glass

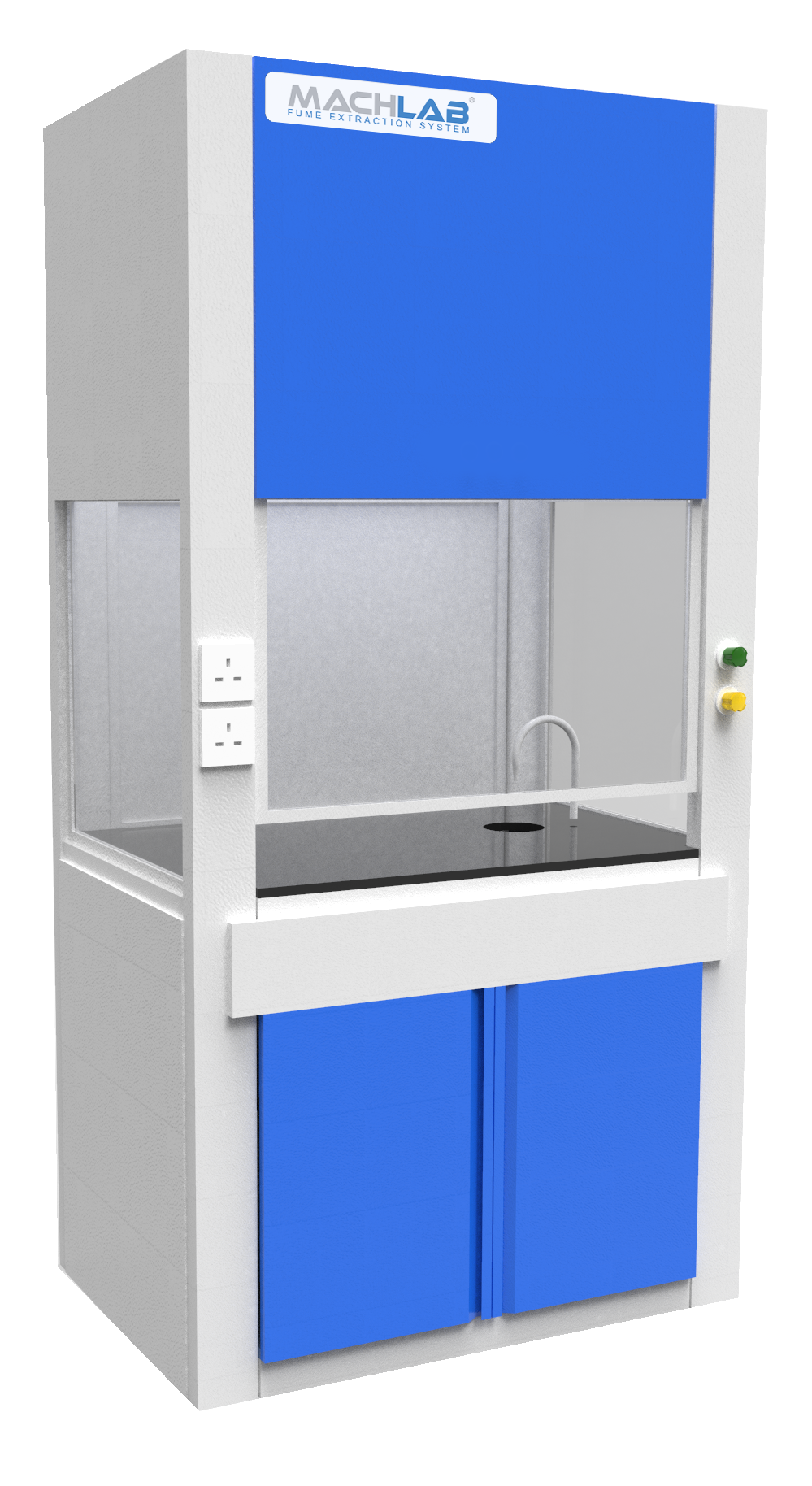

Ductless Carbon-Filtered Fume Hood

An eco-friendly, energy-efficient recirculating fume cupboard that requires zero ductwork installation. Utilizes advanced multi-stage activated carbon and HEPA filtration technology to capture chemical vapors, volatile organic compounds (VOCs), and hazardous fumes, returning purified air back into the room.

  • Zero ducting required, low installation cost, fully mobile
  • Real-time air monitoring sensors for chemical filter saturation
  • High efficiency activated carbon filters customized per application
  • Drastically reduces HVAC building energy consumption
Ductless Carbon Filtered Fume Hood

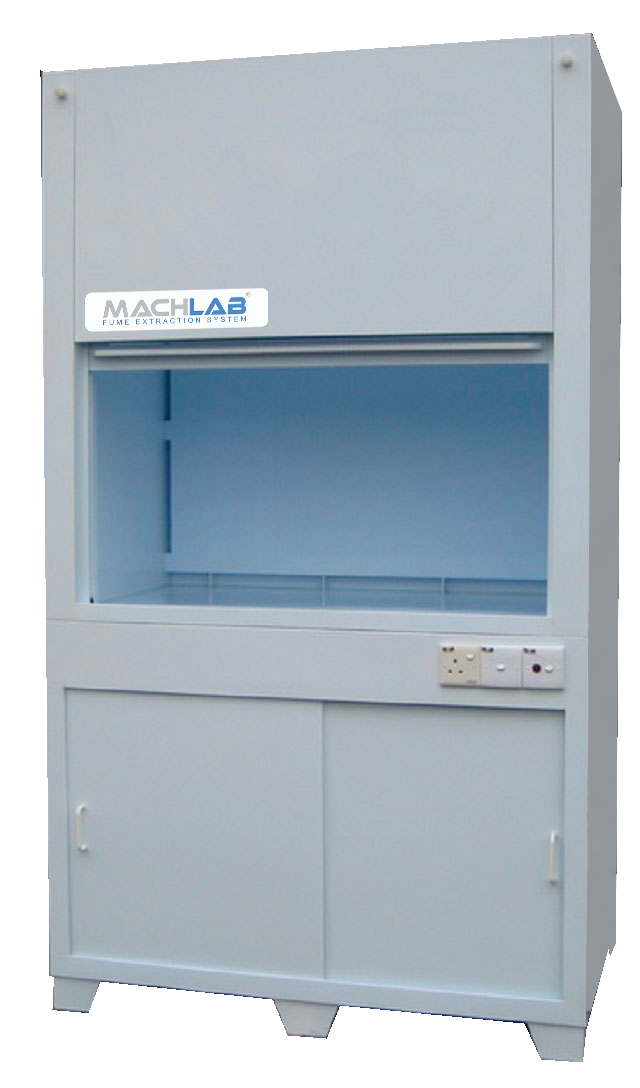

Polypropylene (PP) Corrosive-Proof Fume Hood

Constructed entirely from premium-grade thermally welded Polypropylene panels, this model provides complete metal-free interior surfaces. Designed for environments handling aggressive acids, trace metal analysis, semi-conductor manufacturing, and harsh chemical treatments where metal corrosion cannot be tolerated.

  • 100% rust-proof and highly resistant to severe chemical staining
  • Ideal for cleanroom environments and trace metal analytical labs
  • Robust thermally welded PP structure with high mechanical strength
  • Easy-to-clean hydrophobic internal surfaces
Polypropylene Chemical Resistant Fume Hood

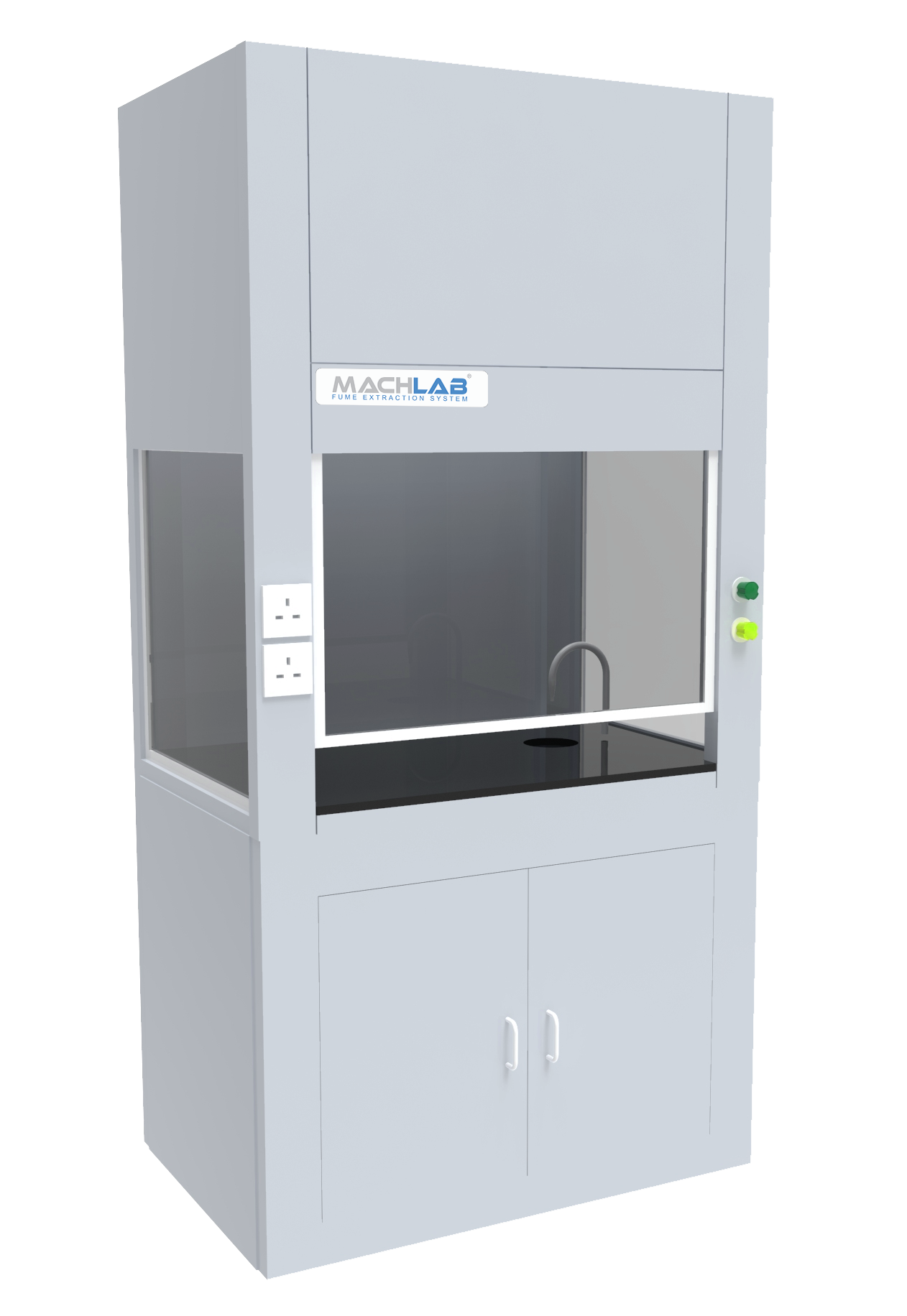

Polypropylene Ductless Filtered Fume Hood

Combines the supreme chemical inertness of polypropylene construction with the flexibility of ductless recirculating filter technology. Designed for laboratories working with aggressive solvents and acids in locations where exterior duct installation is impractical or prohibited.

  • Non-corrosive polypropylene construction combined with HEPA/Carbon filtration
  • Microprocessor control panel with digital airflow display
  • Plug-and-play installation for temporary or modular research units
  • Quiet centrifugal blower system with speed regulation
Polypropylene Ductless Filtered Fume Hood

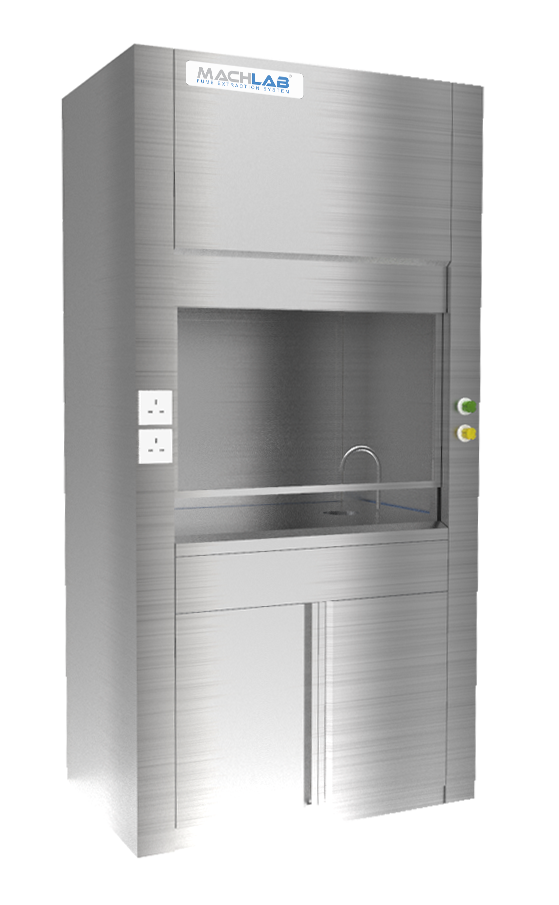

Stainless Steel Cleanroom Fume Hood

Fabricated from high-grade 304 or 316L stainless steel, engineered for sterile laboratory applications, radiopharmaceutical handling, nuclear research, cleanrooms, and food & beverage quality assurance testing. Offers outstanding heat resistance, ease of decontamination, and physical durability.

  • Full 304 or 316L stainless steel interior and exterior work chamber
  • Seamless coved internal corners for effortless biocide wipe-down
  • Superior resistance to high thermal loads and radiochemical agents
  • Complies with strict cGMP and ISO cleanroom operational guidelines
Stainless Steel Cleanroom Fume Hood

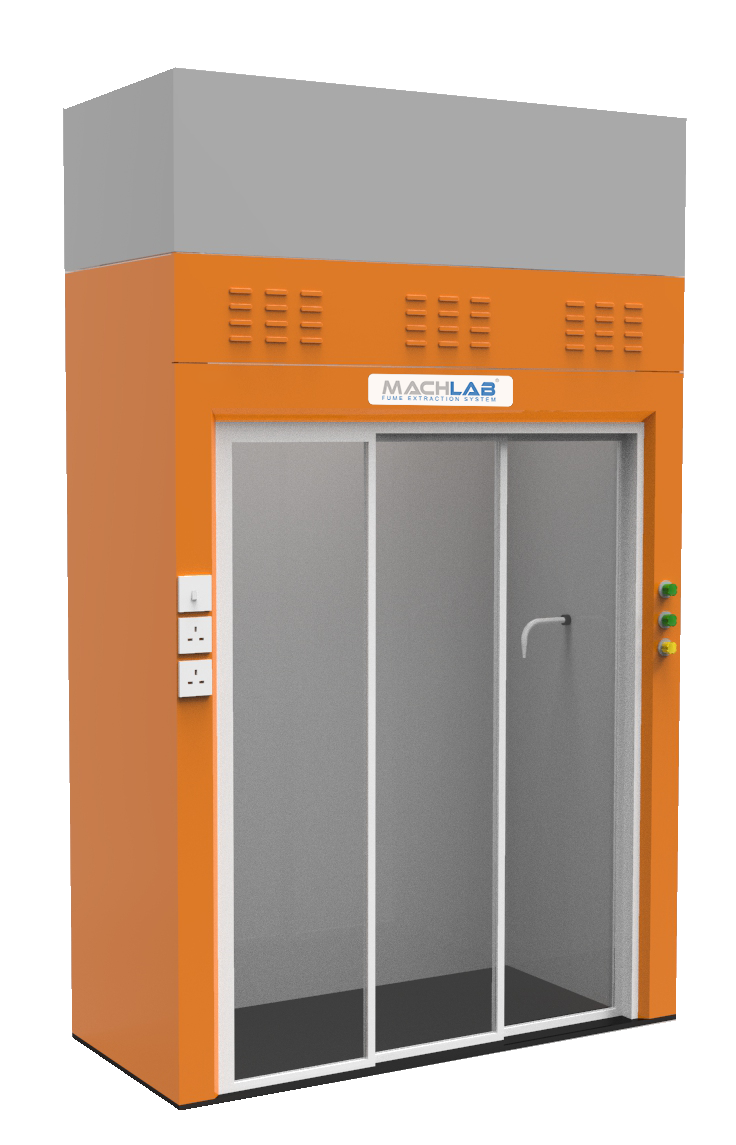

Walk-In Heavy Duty Fume Hood

Designed for floor-mounted installations where large industrial apparatus, pilot plant equipment, distillation columns, or chemical drums must be enclosed. Provides high volume air extraction with dual or multi-tier sash systems for versatile operational access.

  • Floor-mounted design accommodating oversized instruments and reactors
  • Horizontal or vertical multi-panel sliding sash configuration
  • Customizable interior volume, light levels, and utility supply lines
  • High face velocity containment maintained across large sash openings
Walk In Heavy Duty Fume Cupboard

Engineering Standards & Safety Compliance

Machlab fume hoods are custom-engineered and factory-tested to deliver maximum operator protection, operational efficiency, and long-term durability in high-demand laboratory environments.

Containment Testing

Factory tested under ASHRAE 110-2016 and EN 14175 protocols to verify face velocity, containment performance, and tracer gas leakage control under turbulent room conditions.

Aerodynamic Baffle Engineering

Precision-engineered multi-tier internal baffle design ensures uniform face velocity across the entire work surface, eliminating dead air zones and heavy gas accumulation.

Material Selection

Work surfaces and liners are tailored to chemical usage — choices include Trespa TopLab, Epoxy Resin, Solid Polypropylene, or 316 Stainless Steel for optimal chemical inertness.

Need Custom Fume Hood Specifications for Your Project?

Our engineering team provides comprehensive design consulting, CAD layouts, technical datasheets, and direct factory pricing for global procurement managers and turnkey project contractors.
