High-Performance Laboratory Fittings & Utility Accessories
Machlab is a premier manufacturer and global exporter of heavy-duty laboratory accessories engineered specifically for research facilities, university laboratories, pharmaceutical plants, and industrial testing environments. All Machlab utility accessories—ranging from chemical-resistant polypropylene drying racks and specialized water taps to epoxy resin sinks and emergency eyewash stations—are manufactured to comply with international standards such as SEFA, EN 13150, and ANSI Z358.1, ensuring maximum operational safety, long service life, and effortless compliance for global procurement teams.
Laboratory Drying Racks & Pegboards

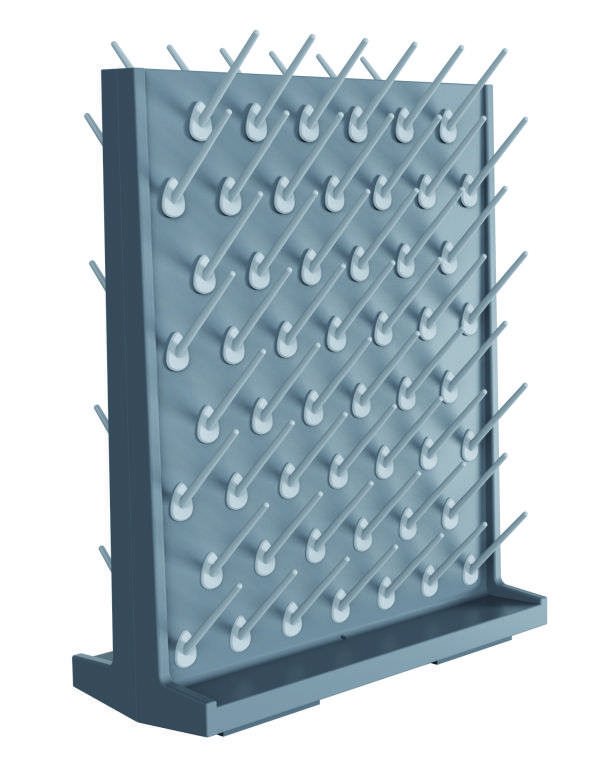

Model: PB-PP2-G (Grey)

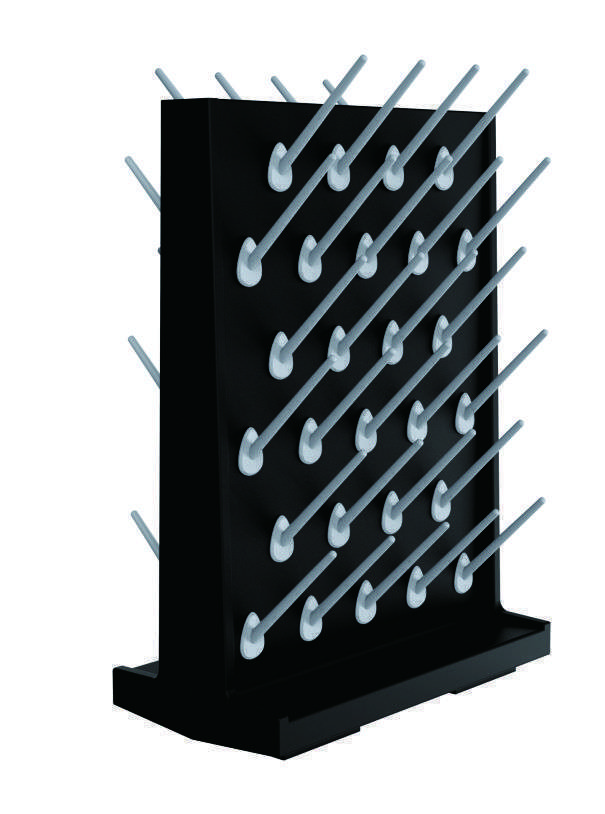

Model: PB-PP1-B (Black)

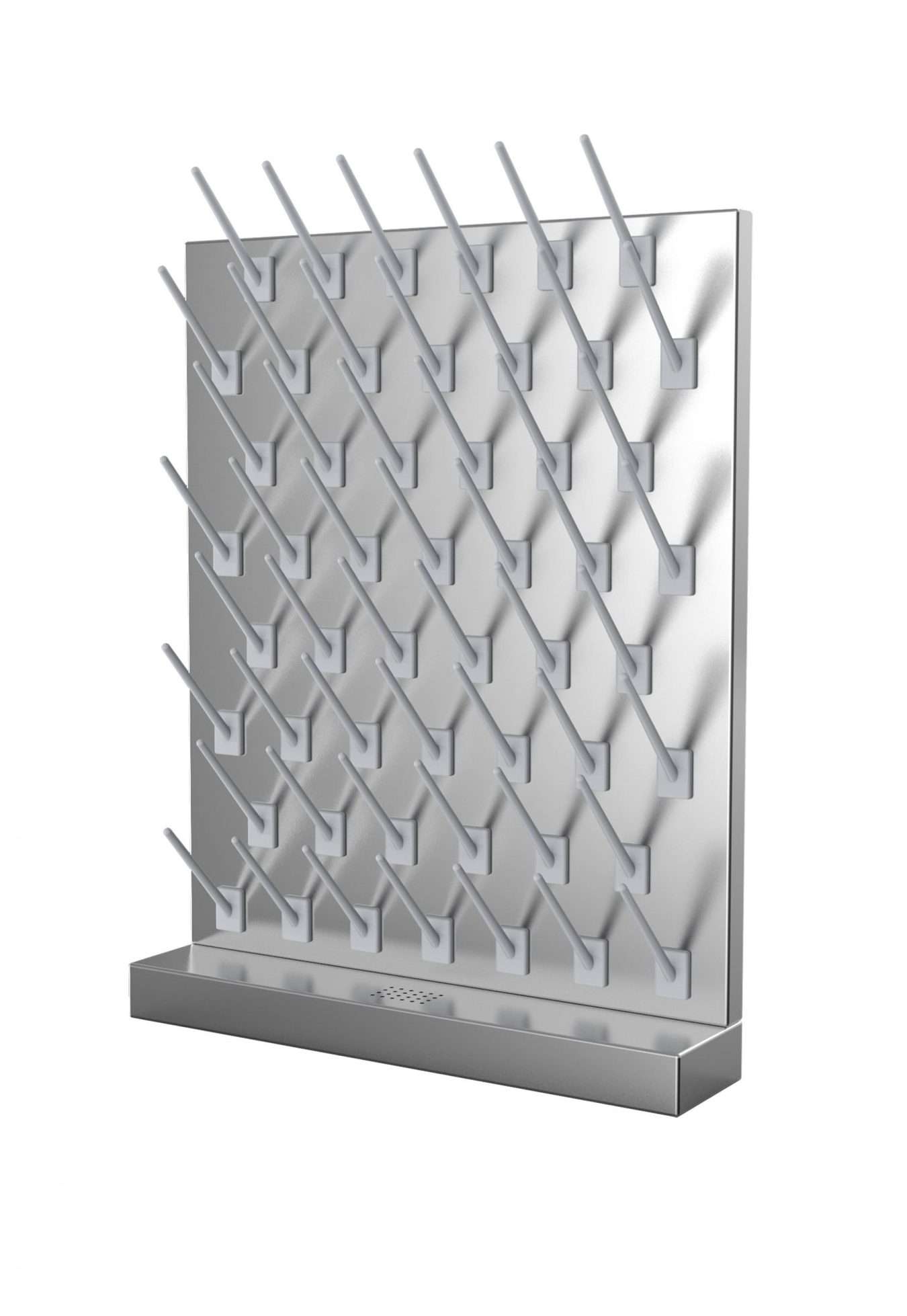

Model: PB-SS2 (SUS304)
Double-Sided Options
Drying Racks (Pegboards) are essential fittings for any analytical or industrial laboratory workbench. Designed to hold washed glassware, beakers, flasks, and test tubes safely, Machlab pegboards feature integrated drainage channels and leak-proof drip collector trays that drain fluid efficiently away from work surfaces.
Our high-grade Polypropylene (PP) and SUS304 Stainless Steel pegboards provide exceptional chemical resistance against harsh acids, solvents, and corrosive reagents commonly used in modern laboratory environments.
Polypropylene (PP) Pegboard Specifications
| Model # | Dimensions (L x H x D mm) | Number of Pegs | Configuration | Colour |
|---|---|---|---|---|
| PB-PP1-G | 400 x 550 x 108 | 27 Pegs | Single-Sided | Grey |
| PB-PP2-G | 500 x 700 x 122 | 52 Pegs | Single-Sided | Grey |
| PB-PP1-G2 | 400 x 550 x 265 | 54 Pegs (27 x 2) | Double-Sided Bench Top | Grey |
| PB-PP2-G2 | 500 x 700 x 295 | 104 Pegs (52 x 2) | Double-Sided Bench Top | Grey |
| PB-PP1-B | 400 x 550 x 108 | 27 Pegs | Single-Sided | Black |
| PB-PP2-B | 500 x 700 x 122 | 52 Pegs | Single-Sided | Black |
| PB-PP1-B2 | 400 x 550 x 265 | 54 Pegs (27 x 2) | Double-Sided Bench Top | Black |
| PB-PP2-B2 | 500 x 700 x 295 | 104 Pegs (52 x 2) | Double-Sided Bench Top | Black |
SUS304 Stainless Steel Pegboard Specifications
| Model # | Dimensions (L x H x D mm) | Number of Pegs | Material Grade | Finish |
|---|---|---|---|---|
| PB-SS1 | 400 x 550 x 108 | 27 Pegs | SUS304 Grade Stainless Steel | Polished Satin Finish |
| PB-SS2 | 500 x 700 x 122 | 52 Pegs | SUS304 Grade Stainless Steel | Polished Satin Finish |
Chemical-Resistant Laboratory Water Taps & Fittings

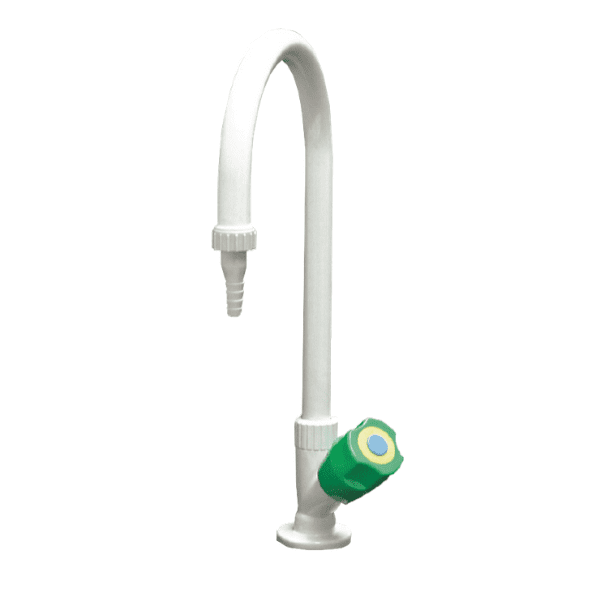

WT-1 (1-Way Gooseneck)

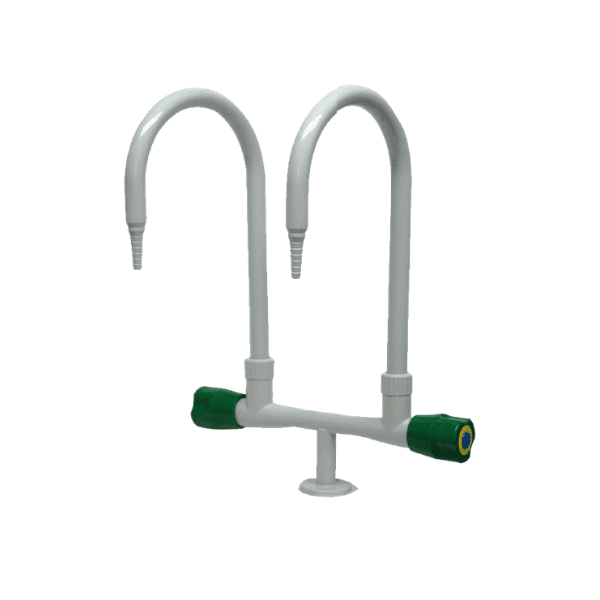

WT-2 (2-Way Gooseneck)

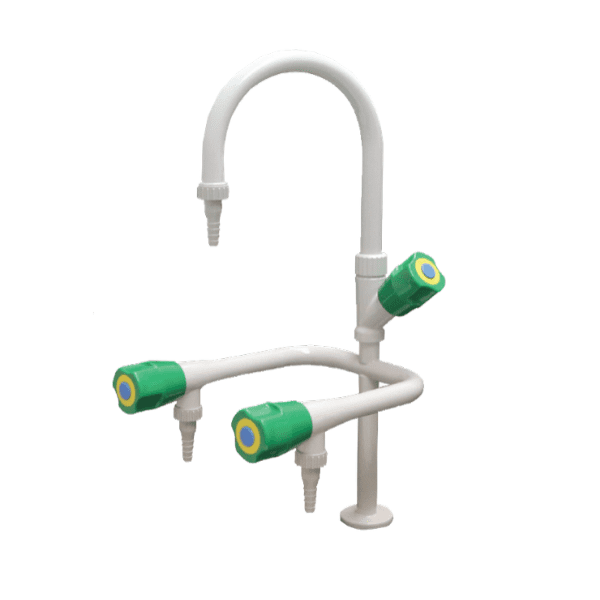

WT-3 (3-Way Gooseneck)
WT-DI (DI/Deionised Water)
Machlab laboratory water taps are specifically forged for arduous scientific operations. Built from high-grade solid brass and coated with chemical-resistant epoxy powder finish, our fittings withstand severe chemical vapors, UV exposure, and continuous industrial use. Featuring 90° ceramic disc valves tested to 500,000 operation cycles, Machlab water taps deliver absolute drip-free precision.
Available Water Tap & Fitting Models
- WT-1: 1-Way Gooseneck Water Tap with serrated removable nozzle.
- WT-2: 2-Way Bench-Mounted Gooseneck Water Tap with dual control valves.
- WT-3: 3-Way Multi-Outlet Gooseneck Water Tap for versatile wash stations.
- WT-M1: Single-Column Hot & Cold Water Mixer Tap with ergonomic lever handle.
- WT-M2: Double-Column Heavy Duty Hot & Cold Water Mixer Tap for high-demand sinks.
- WT-DI: Deionised / Distilled / Pure Water Tap featuring non-contaminating interior lining (PP / Polyethylene) to preserve fluid purity.
Chemical & Acid Resistant Laboratory Sinks
Polypropylene Sinks (PPS)

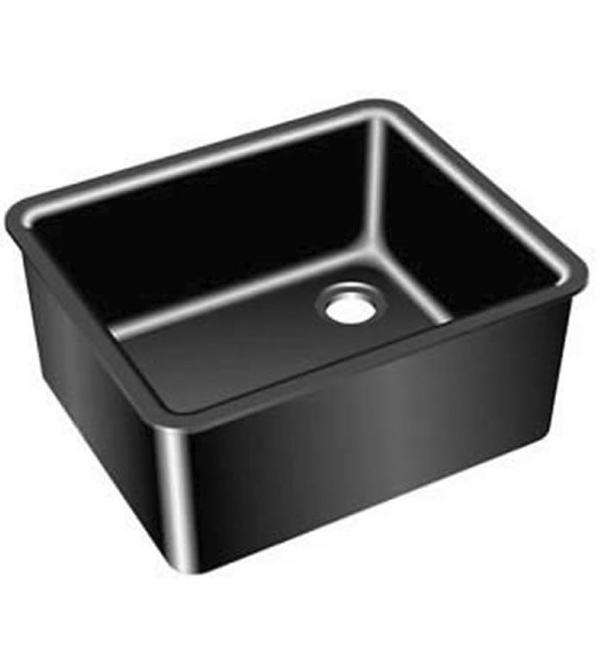

Epoxy Resin Sinks (ERS)

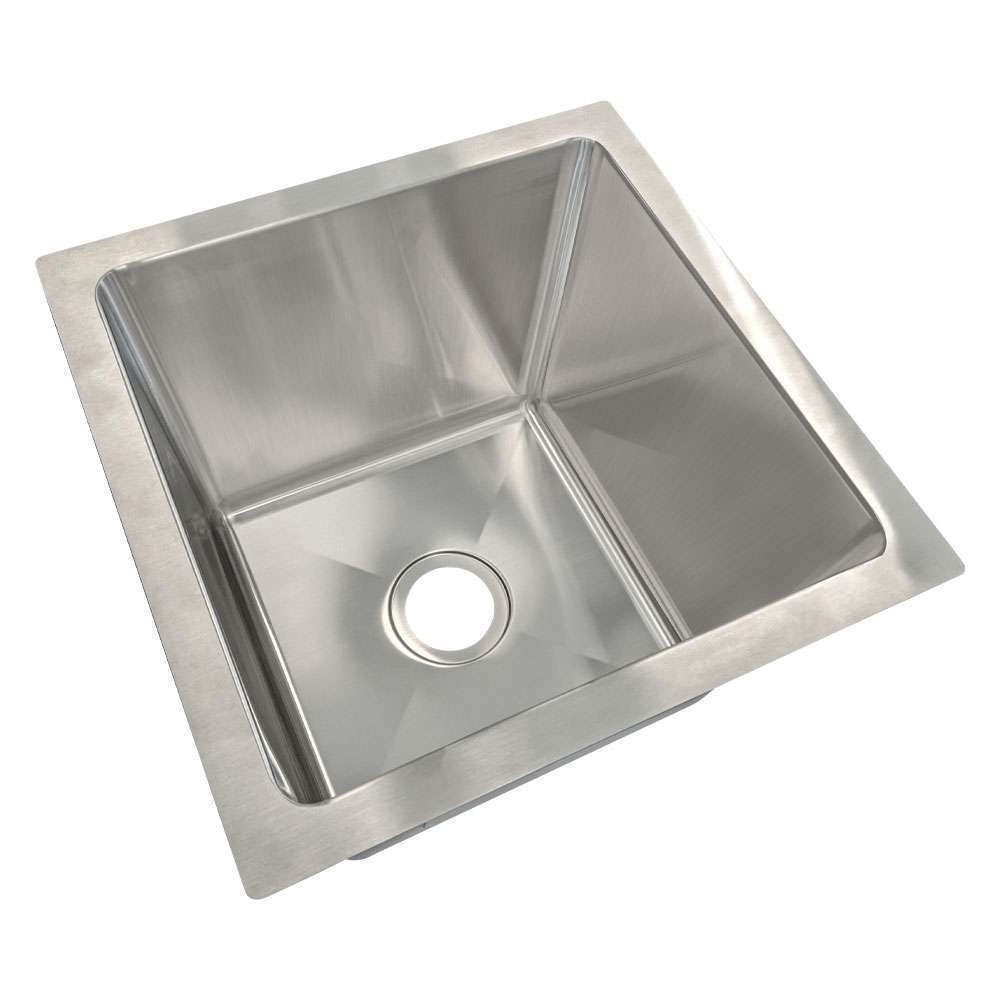

Stainless Steel Sinks (SSS)
Ceramic Sinks (CLS)
Machlab manufactures high-performance laboratory sinks available in four key materials tailored to specific chemical, thermal, and mechanical strain profiles. Seamlessly integrated into epoxy resin, phenolic resin, or stainless steel worktops, our sink basins feature coved interior corners to eliminate bacterial accumulation and streamline sanitation routines.
Polypropylene (PP) Sink Dimensions
| Model # | Outer Dimensions (L x W x H mm) | Material | Colour |
|---|---|---|---|
| PPS01 | 418 x 317 x 160 | High-Density Polypropylene | Black |
| PPS02 | 548 x 398 x 235 | High-Density Polypropylene | Black |
| PPS03 | 810 x 470 x 330 | High-Density Polypropylene | Black |
Monolithic Epoxy Resin Sink Dimensions
| Model # | Dimensions (L x W x H mm) | Key Features | Available Colours |
|---|---|---|---|
| ERS01 | 305 x 203 x 152 | Non-porous, extreme acid & thermal shock resistance | Black / Grey / White |
| ERS02 | 356 x 254 x 152 | Monolithic resin construction, standard drop-in / undermount | Black / Grey / White |
| ERS03 | 406 x 305 x 203 | High chemical resistance, smooth radius interior corners | Black / Grey / White |
| ERS04 | 457 x 381 x 279 | Deep basin design for glassware washing | Black / Grey / White |
| ERS05 | 406 x 406 x 190 | Square format for compact island benches | Black / Grey / White |
| ERS06 | 600 x 450 x 295 | Extra large volume industrial washing sink | Black / Grey / White |
SUS304 / SUS316 Stainless Steel & Ceramic Sink Dimensions
| Model # | Dimensions (L x W x H mm) | Material Specification | Application Area |
|---|---|---|---|
| SSS01 | 450 x 450 x 250 | SUS304 / SUS316 Heavy Duty Stainless Steel | Cleanroom & Pharmaceutical Labs |
| SSS02 | 570 x 450 x 250 | SUS304 / SUS316 Heavy Duty Stainless Steel | Biological & Medical Facilities |
| SSS03 | 760 x 450 x 250 | SUS304 / SUS316 Heavy Duty Stainless Steel | Industrial Production & Prep Rooms |
| CLS01 | 565 x 358 x 230 | Fireclay Industrial Lab Grade Ceramic (Glazed) | Heavy Chemical & Concentrated Acid Labs |
ANSI Z358.1 Compliant Emergency Eyewash & Safety Showers

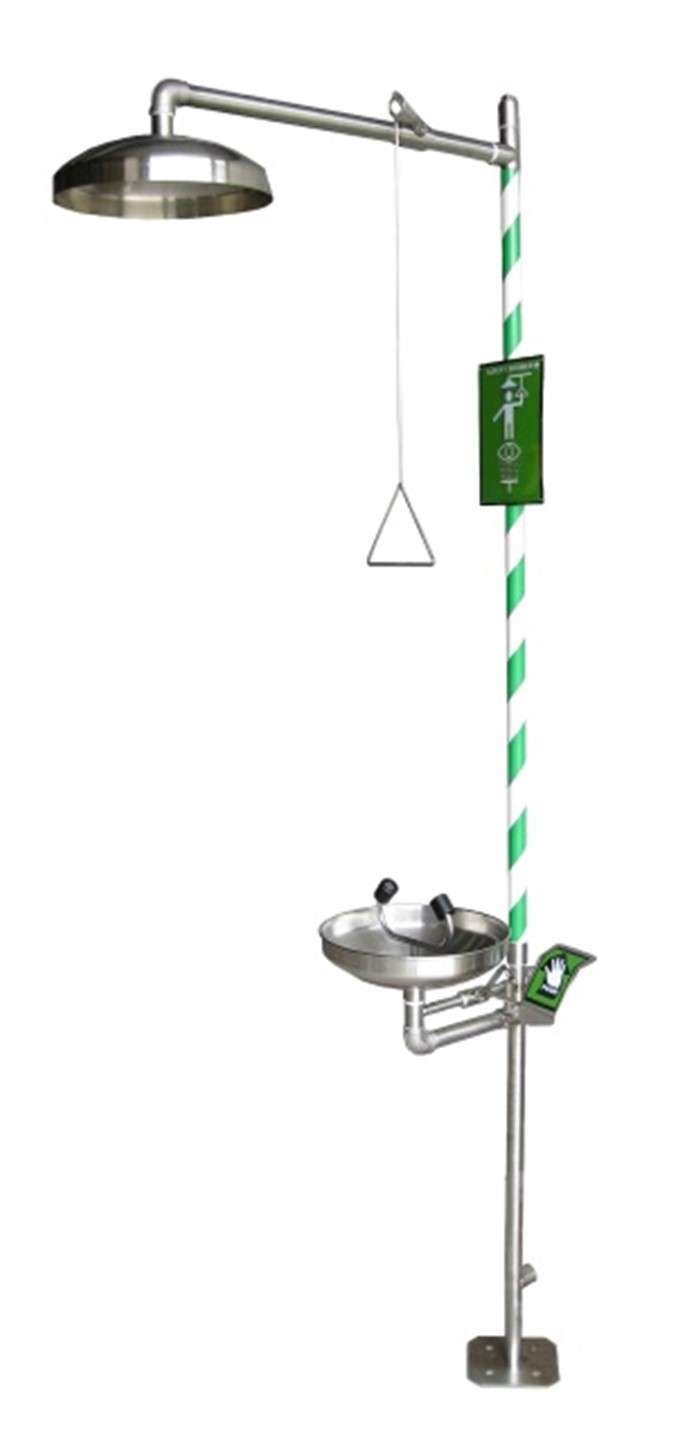

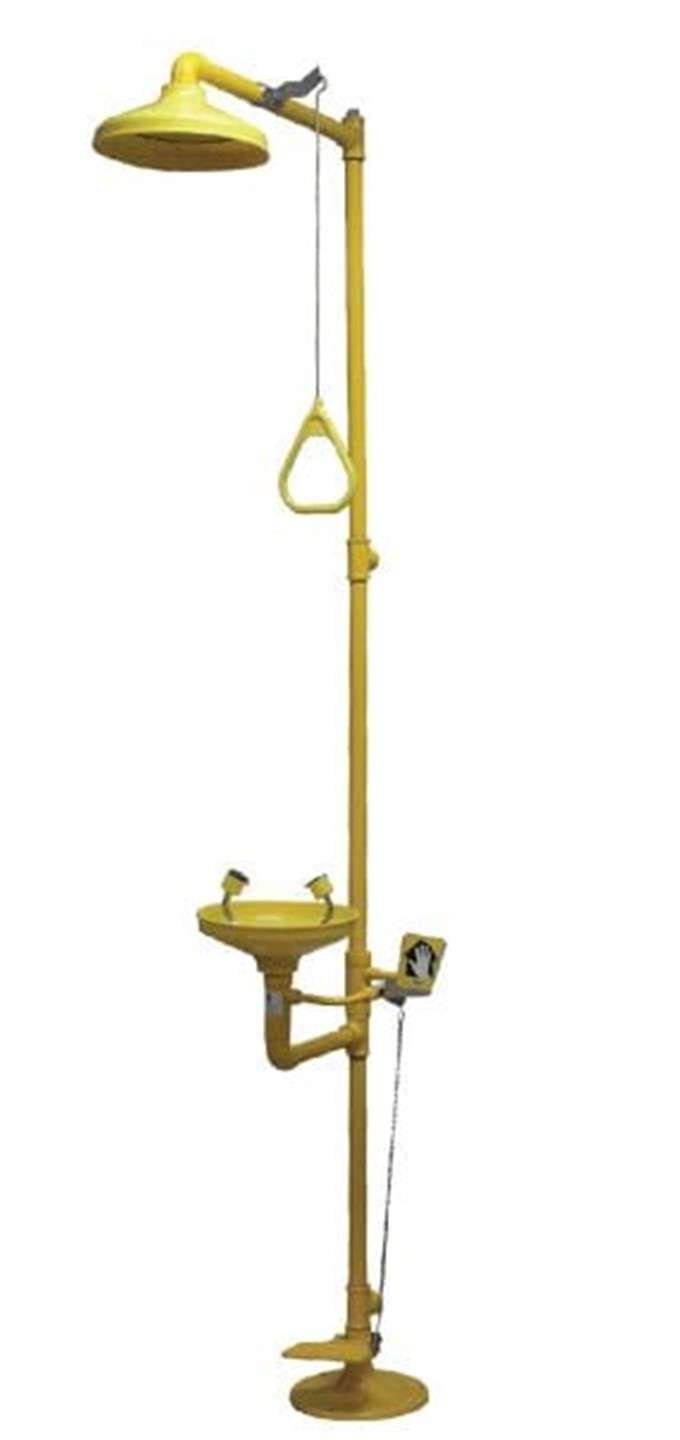

Combination Safety Shower
Emergency Drench Shower

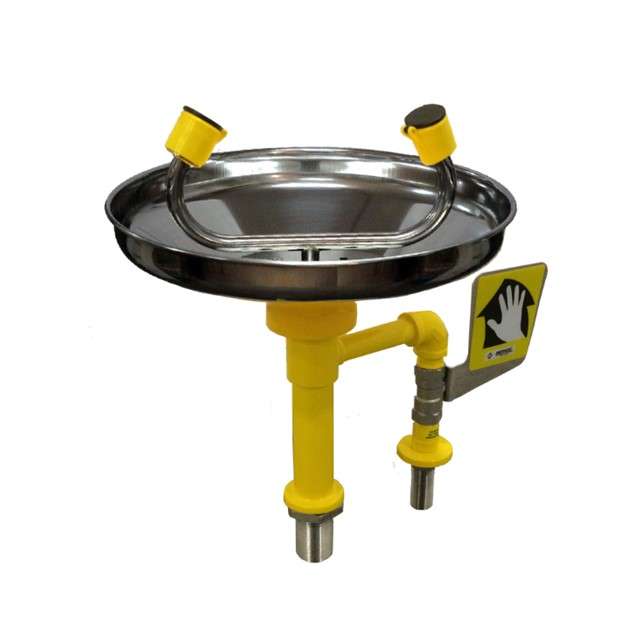

Bench-Mounted Eyewash

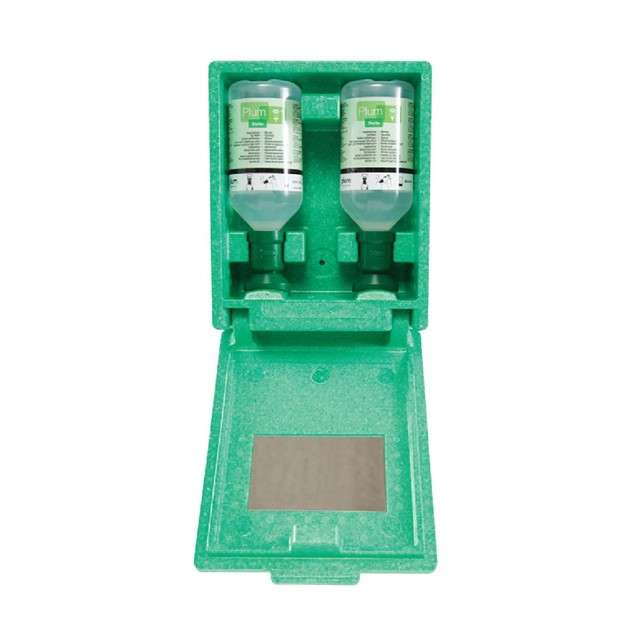

Portable Eyewash Unit
Worker safety is paramount in hazardous chemical handling environments. Machlab supplies emergency eyewash and drench safety shower systems engineered to meet international ANSI Z358.1 and EN 15154 standards. Constructed from 304 Stainless Steel or chemical-resistant yellow epoxy-coated galvanized piping, our safety showers deliver continuous, zero-failure water flow during accidental chemical exposure emergencies.
Emergency Safety Shower Systems
- Combination Safety Shower & Eyewash Units: Floor-mounted high-volume drench shower head combined with foot-pedal / push-handle operated dual aerated eyewash spray nozzles.
- Wall-Mounted Safety Showers: Space-saving emergency overhead drench showers for tight corridor or laboratory doorways.
- Ceiling-Mounted Safety Showers: Concealed overhead emergency drench units designed for seamless integration into laboratory cleanroom ceiling grids.
- Shower Curtains & Containment Enclosures: Heavy-duty yellow PVC chemical containment curtains to prevent water spillage during emergency activation.
Emergency Eyewash Stations
- Bench-Mounted Eyewash Units: Single or double spray-head deck-mounted eyewash units featuring flexible stay-open valves and protective dust caps.
- Wall-Mounted Emergency Eyewash: Stainless steel or ABS plastic bowl eyewash stations designed for immediate wall access near hazardous chemical areas.
- Floor-Mounted Pedestal Eyewash: Free-standing foot-pedal activated eyewash stations for large open laboratory spaces.
- Self-Contained Portable Eyewash: Gravity-fed portable 30L/60L eyewash tanks requiring no plumbing connection, ideal for field laboratories and temporary work sites.
Need Technical CAD Drawings or Quotations for Your Laboratory Project?
Our engineering team assists international procurement officers, laboratory designers, and EPC contractors with custom dimensioning, material selection, and bulk export pricing.
Send an Inquiry
